CM9V-T1A
| Type | Package |
Dimension
[mm] |
Frequency |
Load Cap. CL
[pF] |
Series Resistance
[typ / max kΩ] |
Documents
|
||
|---|---|---|---|---|---|---|---|---|
| CM9V-T1A |
|
1.6 x 1.0 x 0.50 | 32.768 kHz | 4.0 / 6.0 / 7.0 / 9.0 / 12.5 pF | 60 / 75 kΩ |
Datasheet Product Doc. |
CM9V-T1A is a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with metal lid.
Features
- Ultra small size: 1.6 × 1.0 × 0.50 mm
- Outstanding hermetic sealing with gold-tin preform
- High stability and low aging guaranteed by hermetic sealing
- Available for extended operating temperature range
- Lightweight: 2.4 mg
- High shock and vibration resistant
- 100% Pb-free, RoHS-compliant
- Automotive qualification according to AEC-Q200 available
Ordering Information
Applications
- IoT
- Wearables, Portables
- Health Care
- Metering
- Industrial
- Automotive
- Ultra Small Devices
Documentation

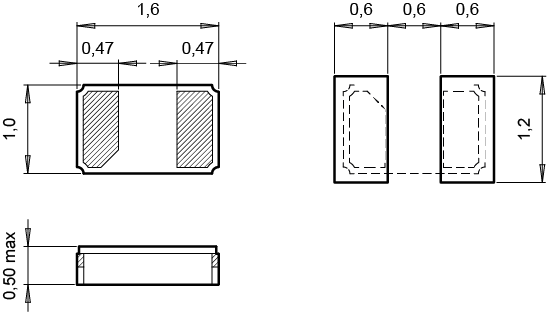

Dimensions
