Evaluation kit RV-4162-C7

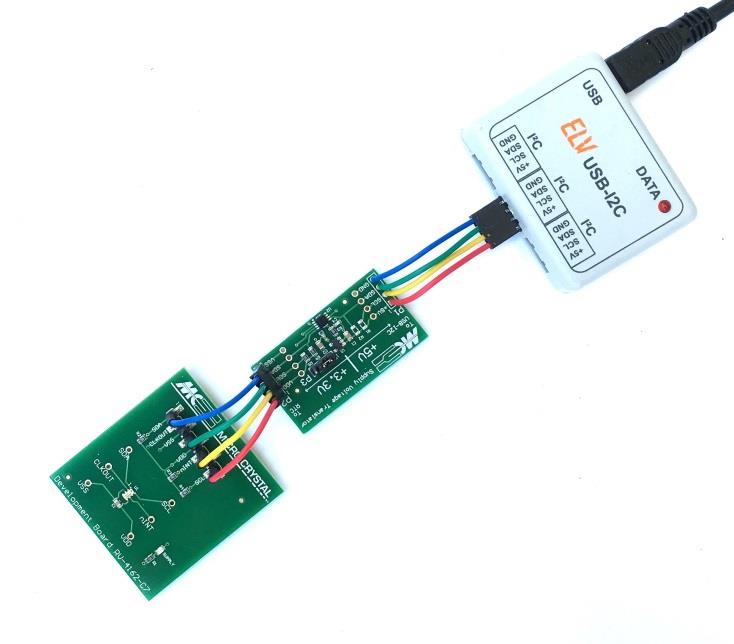

The evaluation kit simplifies the system design. The RTC functions can be directly evaluated and tested. The kit consists of 4 parts:

  • Dongle to establish the Interface between the USB-port of the PC and the I²C-bus
  • The translation board to convert the 5 V domain of the dongle to a 3.3V domain for the RTC
  • The development board RV-4162-C7. All components including the small RTC package and a row of pins are assembled
  • The Graphical User Interface (GUI) is ready for download
