RV-2123-C2

Type Package
[mm] 		Interface Features
info-ico 		Current
@ 3V 		Time Accuracy
@ 25°C 		Temp Comp
-40/85°C 		VDD
min 		VDD
max 		Temp.
max 		Documents pdf-ico
RV-2123-C2 RV-2123-C2 5.0 x 3.2 x 1.2 SPI 130 nA ±20 ppm 1.1 V 5.5 V +85°C Datasheet
App. Manual
Free Samples

RV-2123-C2 is a CMOS real-time clock/calendar module optimized for ultra low power consumption. Data is transferred serially via a Serial Peripheral Interface (SPI-bus) with a maximum data rate of 6.25Mbits/s, the built-in word address register is incremented automatically after each written or read data byte. Beyond standard RTC-functions like year, month, day, weekday, hours, minutes, seconds information, the RV-2123-C2 offers Alarm and Timer-Interrupt function, programmable Clock-Output and Voltage-Low-Detector. A programmable Offset-Register allows fine tuning of the clock to improve time-accuracy @ 25°C, for ageing adjustment or to compensate the frequency-drift over the temperature of the 32.768 kHz “Tuning-Fork” crystals.

Features

  • Low power consumption: 130 nA @ 3 V.
  • Wide operating voltage range: 1.1 V to 5.5 V.
  • Time accuracy: ±20 ppm @ 25°C..
  • User programmable offset value.
  • Oscillator stop detection.
  • Provides year, month, weekday, date, hours, minutes and seconds.
  • Timer and Alarm functions.
  • Clock output frequencies: 32.768 kHz to 1 Hz.
  • SPI-bus interface: 4-wire, 8 MHz.
  • Automotive qualification according to AEC-Q200 available.

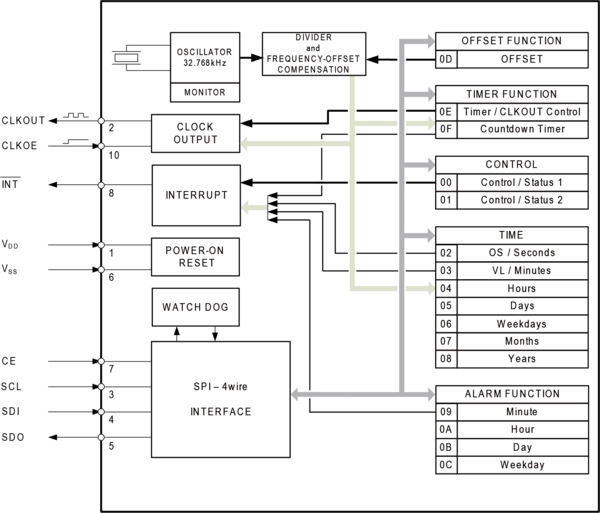

Block Diagram

Applications

The RV-2123-C2 RTC module is ideal for

  • IoT
  • Wearables, Portables
  • Health Care
  • Metering
  • Industrial
  • Automotive

Dimensions
