CC9V-T1A Medical
| Type | Package |
Dimension
[mm] |
Frequency |
Load Cap. CL
[pF] |
Series Resistance
[typ / max kΩ] |
Documents
|
||
|---|---|---|---|---|---|---|---|---|
|
CC9V-T1A Medical |
|
1.6 x 1.0 x 0.55 |
32 kHz / 32.768 kHz 100 kHz / 102.4 kHz |
4.0 / 6.0 / 7.0 / 9.0 / 12.5 pF |
60 / 75 kΩ 14 / 20 kΩ |
Datasheet Product Doc. |
The CC9V-T1A Medical is a low frequency SMD Quartz Crystal Unit built with a Tuning Fork Crystal Resonator. Manufactured in accordance with the highest quality production technologies, it operates under vacuum in a Helium impervious full ceramic package.
CC9V-T1A Medical is dedicated for specific use in Class III implantable medical devices and benefits from long-term reliability which is of utmost importance and a hallmark of Micro Crystal’s entire medical implantable grade portfolio.
Features
- Safe for Helium environment: Ceramic lid with gold-tin preform-seal for best long-term hermeticity and aging stability
- Proprietary manufacturing and testing processes
- Extended operating temperature range
- Customer specific testing/screening on request
- Components and manufacturing traceability records retained
- Ultra small size, lightweight
Ordering Information
Applications
- Pacemakers
- Defibrillators
- Neurostimulators
- Cardiac Monitoring Devices
- Implantable Drug Delivery Pumps
- Infusion Pumps
- Cochlear Implants
- Smart Orthopedic Implants

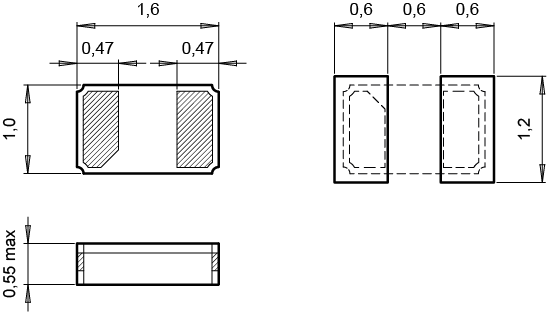

Dimensions
