CC1V-T1A
| Type | Package |
Dimension
[mm] |
Frequency |
Load Cap. CL
[pF] |
Series Resistance
[typ / max kΩ] |
Documents
|
||
|---|---|---|---|---|---|---|---|---|
| CC1V-T1A |
|
8.0 x 3.7 x 1.75 |
30 kHz to 200 kHz 201 kHz to 560 kHz 561 kHz to 2 MHz |
9.0 / 12.5 pF 4.0 pF 10.0 pF |
40 / 60 kΩ 1.4 / 3.5 kΩ 0.12 / 0.4 kΩ |
Datasheet Product Doc. |
CC1V-T1A is a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with ceramic lid.
Features
- Ultra small size: 8.0 × 3.7 × 1.75 mm
- Outstanding hermetic sealing with gold-tin preform
- High stability and low aging guaranteed by hermetic sealing
- Available for extended operating temperature range
- Lightweight: 140 mg
- High shock and vibration resistant
- 100% Pb-free, RoHS-compliant.
Ordering Information
Applications
- IoT
- Wearables, Portables
- Health Care
- Metering
- Industrial
- Ultra Small Devices
Documentation

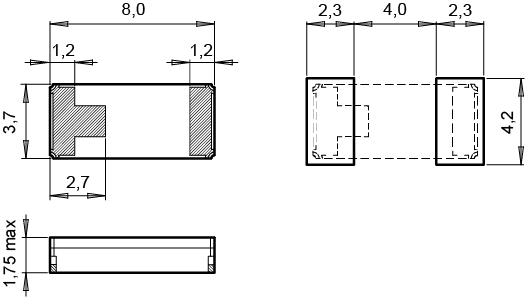

Dimensions
