CC5V-T1A
| Type | Package |
Dimension
[mm] |
Frequency |
Load Cap. CL
[pF] |
Series Resistance
[typ / max kΩ] |
Documents
|
||
|---|---|---|---|---|---|---|---|---|
| CC5V-T1A |
|
4.1 x 1.5 x 0.90 | 32.768 kHz | 6.0 / 7.0 / 9.0 / 12.5 pF | 50 / 70 kΩ |
Datasheet Product Doc. |
CC5V-T1A is a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with ceramic lid.
Features
- Small size: 4.1 × 1.5 × 0.9 mm
- Mature product for harsh environments
- Outstanding hermetic sealing with gold-tin preform
- High stability and low aging guaranteed by hermetic sealing
- Available for extended operating temperature range
- High shock and vibration resistant
- 100% Pb-free, RoHS-compliant.
Ordering Information
Applications
- IoT
- Wearables, Portables
- Health Care
- Metering
- Industrial
- Ultra Small Devices
Documentation

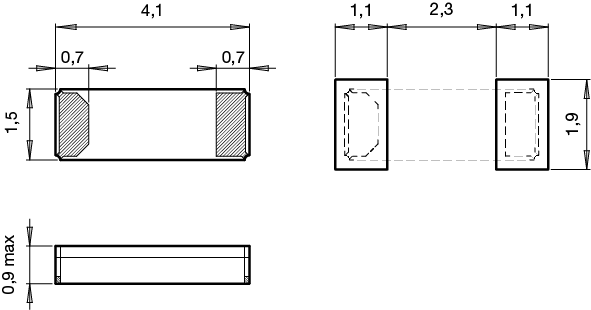

Dimensions
